New
Available
  • 472

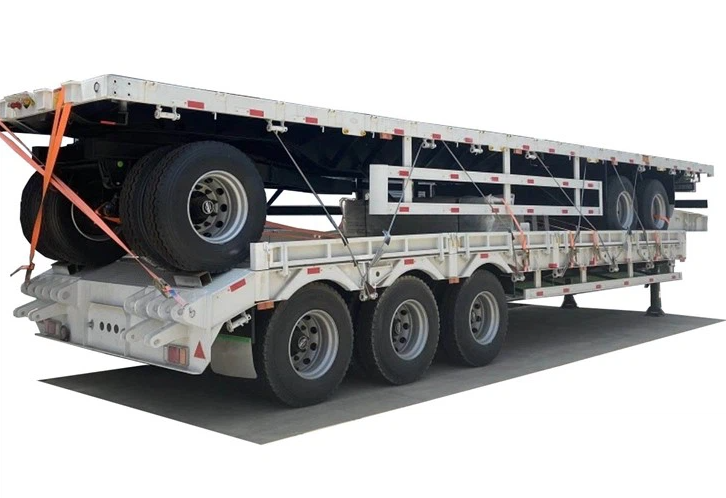

40ft Flatbed Container Trailer

All our products can be customized according to customer requirements and manufactured to comply with local regulatory standards.

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type
Category: Trailer

Description:

All our products can be customized according to customer requirements and manufactured to comply with local regulatory standards.



SPECIFICATION



ITEM DESCRIPTION

Dimensions(L*W*H)

12,400*2,500*1,570mm

Wheelbase

1,310mm

Loading Capacity

30~60T

Trailer Weight

10,200kg

Main beam Material

Q345B manganese plates, automatic submerged arc welded.

Main Beam Size

500~520mm height, 14mm upper plate, 16mm lower plate, 8mm middle web.

Axle

3*13/16/20ton FUWA/BPM brand.

Suspension

Heavy Duty Mechanic Suspension with Leaf Springs.

Landing Gear

JOST brand two-speed, Manual operating Heavy duty 28ton.

King Pin

2” (50mm) or 3.5” (90mm) welded pin.

Platform

3mm Thickness Q235 steel plate.

Twist Lock

12pcs

Brake System

WABCO Brand emergency brake valve, Dual Lines Braking System With Automatic Air Chambers.

Brake chamber

4 Nos.× Double Chamber
2 Nos. ×Single Chamber

Electrical System

24V, 7 core socket, lights according to European standards.

Toolbox

1 box of standard tools.

Tire

12R22.5 ×12 Nos

Rim

9.0-20 ×12 Nos.

Spare tire

2 pcs

Painting

Sandblasting, SA 2.5;

50 μm Primer Epoxy Zinc-Rich

70 μm Finish Acrylic Urethane

Color and logo

Depends on the buyers requirements.

Other Specifications

The frame can be flat plate style and skeleton style. Twist lock settings installed 12 pics, 8 pics, and 4 pcs to satisfy the containers with different sizes for convincing.

Application

For 2x20ft or 1x40ft containers transport.
