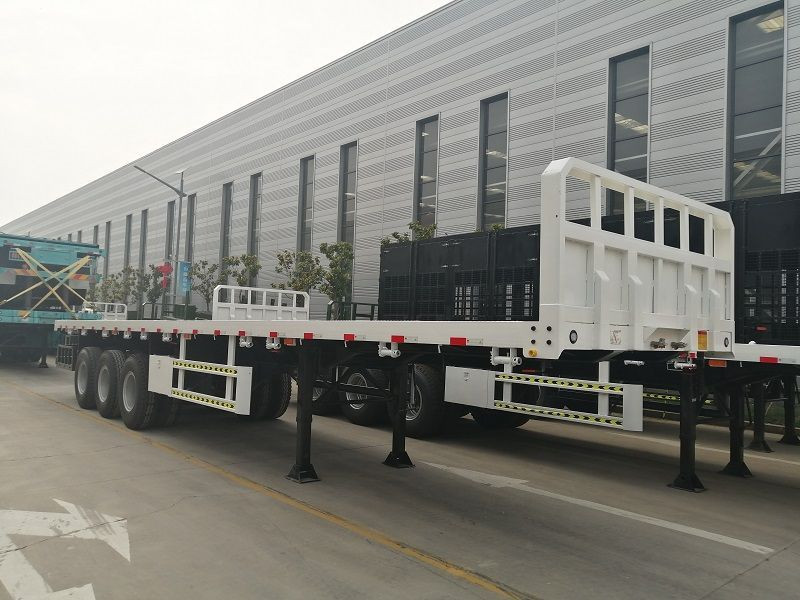

Product Details SKD AND CKD THREE AXLES CONTAINER SEMI TRAILER WITH COLOMN BOARD Product origin: SHANDONG,CHINA Delivery time: 1 MONTH Supply capacity: 10,000 SKD AND CKD three axles container semi trailer with colomn board is convenient for container transportation and can improve the transportation efficiency and reduce the whole vehicle cost Each componeent of ckd or skd three axles semi trailer can be disas
SKD AND CKD three axles container semi trailer with colomn board is convenient for container transportation and can improve the transportation efficiency and reduce the whole vehicle cost
Each componeent of ckd or skd three axles semi trailer can be disassembled and connected by high-strength bolts. The utility model solved the problem that common semi trailer occupies a large amount of space which can not be utilized.
Skd and ckd three axles container semi trailer with colomn board using the most advanced spray paint technology and the delivery cycle is fast
SKD AND CKD three axles container semi trailer with colomn board. All parts of theCKD andSKD three axles container semi trailer can be dismantled and then can be transported in containers with spare parts.
Each container can carry 3 setsSKDandCKD semi trailer.the utility model greatly improves the transportation efficiency and reduces the whole vehicle cost.
The factory take advantage of the most advanced spray paint technology and modular process, so SKD andCKD three axles container semi trailer with column board can be quick delivery since be ordered.
Parameters
Type |
SKD andCKD three axles container semi trailer with colomn board |
Overall dimension |
Total :12500mmx2550 mmx2880mm Box Size :12300 mmx2410mmx1250mm |
Main beam |
Beam height: 500mm Upper plate : 14mm Middle plate : 8mm Down plate : 16mm |
Side beam |
16# U-shape steel 16# |
Platform thickness |
6mm |
Side wall thickness |
4mm |
Material |
Q355B |
Max payload |
Approx. 70ton |
Gross vehicle weight |
Approx. 14ton |
King pin |
90# |
Land gear |
JOST, SAF-HOLLAND |
Axle |
Brand:BPW, FUWA, CIMC,3*16T |
Suspension |
Normal Suspension (60#8mm) |
Thicken leaf spring |
10/10/10 |
Tire |
Triangular tire, 12.00R22.5, 12 pcs |
Rim |
Aluminum rim: ALCOA, ALUX, China brand; Steel rim: China brand |
Brake System |
Normal brake, option ABS / EBS
|
Brake Chamber |
4 Double, 2 Single |
Spare wheel carrier |
2 pcs |
Tool box |
1 pcs |
Electrical System |
Chinese standard 24V lighting system |
Side Marker Lamp |
LED (E-mark/DOT) |
Marking and Color |
By customer’s requirement |
