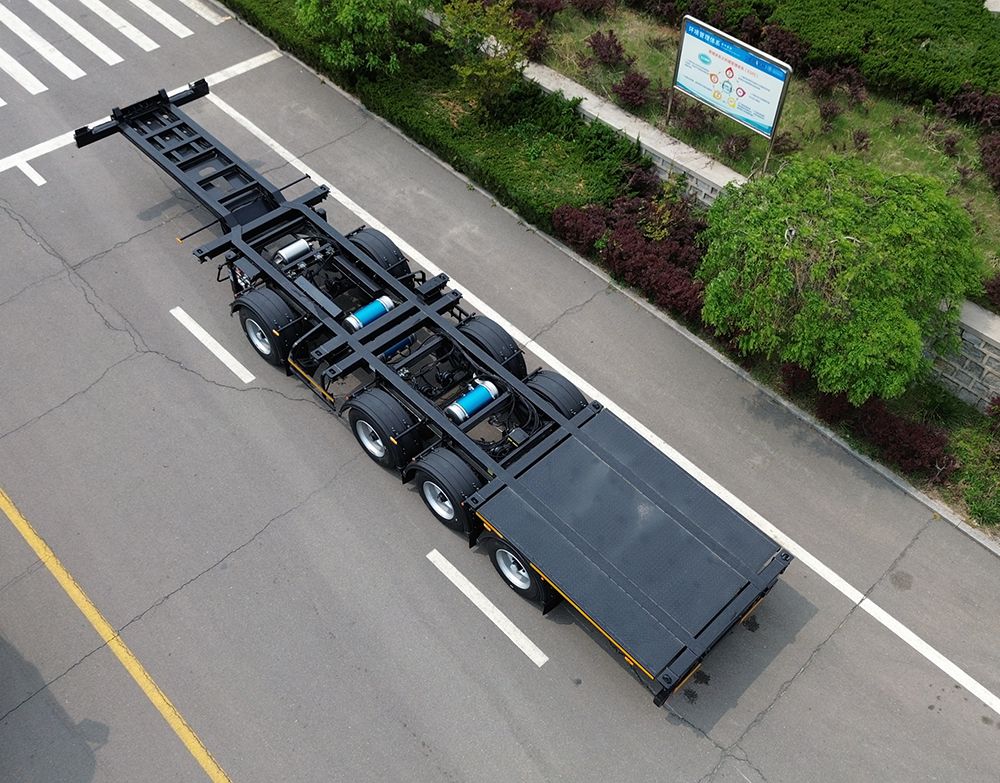

472Container Chassis Parameters for Terminal Flatbed Port Container Semi Trailer
Container Chassis Parameters for Terminal Flatbed Port Container Semi Trailer
| Dimension of the 3 Axle 20&40Feet Flatbed Terminal Container Semi Trailer | ||||||
| Overal Size | 12795*2790*1550/mm | |||||
| Inside Size | 12030*2500*1500 | |||||
| Fifth Wheel Height | 1300mm | |||||
| Wheel Base | 2050mm | |||||
| Track | 1310mm | |||||
| (The above dimension will be adjusted according to the tractor specification.) | ||||||
| Weight: | ||||||
| Payload: | 60,000kg | |||||
| Tare weight: | Approx. 7,300kg | |||||
| G.V.W.R.: | Approx. 67,300kg | |||||
| Specification | ||||||
| Mainbeam | Material is Q345B; Section height 500mm, 14/8/16; | |||||
| Side Beam | Q345B; 160mm Channel steel; | |||||
| Twist locker | twist lockers 12pcs; 10 pcs of container stopper; | |||||
| Kingpin: | 90# or 50# Assembly type Kingpin | |||||
| Welding standard: | All welding are to be done by qualified welder per applicable national standard | |||||
| Running gear: | ||||||
| Suspension: | 6 sets of the heavy mechanical suspensions(leaf spring 13mm*90mm*13pcs) | |||||
| Axle: | Standard axle, 3pcs*13 ton capacity | |||||
| Brake system: | A system with emergency brake and parking brake; Dual line ,air brake, piggyback spring on all axles; Six units of T30/30 chamber; two units of reliable local brand 40L air tank; |
|||||
| Emergency relay valve: | WABCO relay valve | |||||
| Tire: | 12R22.5, 12 pcs. | |||||
| Rim: | 9.00-22.5, 12 pcs. | |||||
| Landing gear: | 28T | |||||
| Electrical System: | ||||||
| Voltage: | 24 Volt | |||||
| Receptacle: | 7-pin ISO 1185 socket; | |||||
| Reflector: | Per customer requirement | |||||
| Cable | One set of 6-core standard Cable | |||||
| Accessories: | ||||||
| Mud guard: | Steel mud guard | |||||
| Spare wheel carriers: | 1sets | |||||
| Tool box: | One piece, 1.5m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar). | |||||
| Remarking: | Acrylic anticorrosive paint | |||||
